Dumbwaiter Lift
Dumbwaiter or Drum type traction lifts are one of the part of goods lift which can be easily installed in very less space. Application of Dumbwaiter or Drum type traction lift is mostly at Hotels, Hospitals, Restaurants, Bar-Café, Stores, Showrooms, Manufacturing Industries, etc. We have various range of dumbwaiter from 50kg load to 5000kg load capacity. Generally these lifts are designed for transportation of different types of goods for vertical travel.
Standard sizes available are 50 kgs, 100 kgs & 250 kgs. For furthur technical assistance kindly contact us for details.
| Load (kg) | Car Dim | Shaft Dim | Entrance (E) | M/C Room Dimns | Over Head | Pit Depth | |||||
| Width (A) | Depth (B) | Height (H) | Width (C) | Depth (D) | Width (K) | Depth (L) | Height | ||||
| 100 | 700 | 700 | 800 | 1200 | 900 | 700 | 1200 | 1150 | 1800 | 3300 | 750 |
| 150 | 800 | 800 | 900 | 1300 | 1000 | 800 | 1300 | 1150 | 1800 | 3300 | 750 |
| 200 | 900 | 900 | 1000 | 1400 | 1100 | 900 | 1400 | 1150 | 1800 | 3300 | 750 |
| 250 | 1000 | 1000 | 1200 | 1500 | 1200 | 1000 | 1500 | 1200 | 1800 | 3300 | 750 |
- Table is only for the reference considering the standard size. It may vary as per the site for different requirement
Key Points
- Less space required as no need of counter weight
- Standard speed is 0.15 to 0.30 m/s
- Easily installed from 10 feet 300 feet travelling height
- Different load & speed can be available as per the customize requirement especially for industries

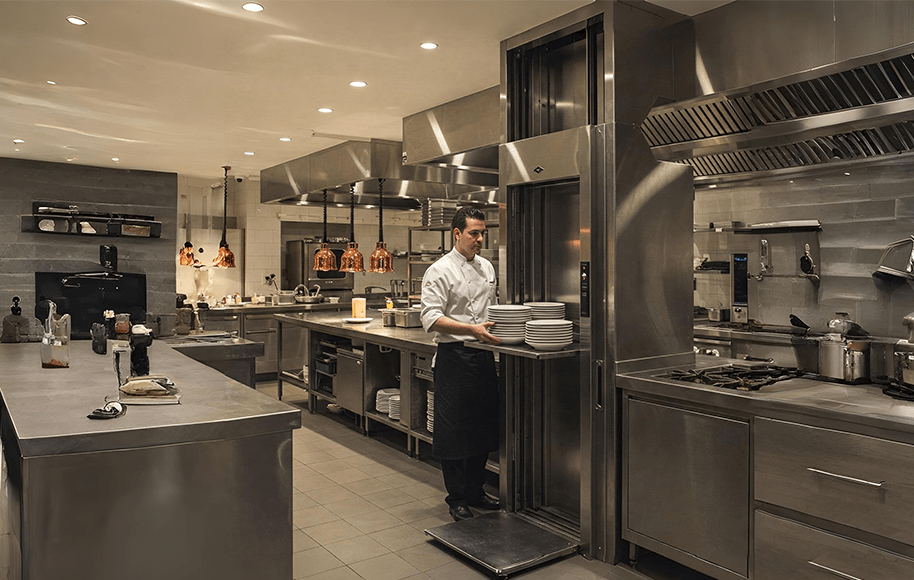

- Noise free & jerk less operation especially for vertical travel of food item in kitchen lift
×
